SPECIFICATION
Model:LED-001
Brand:SUNNY

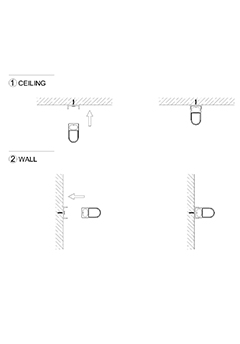

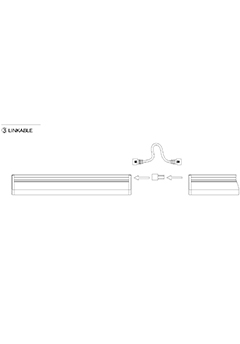

Application:wall/ceiling mounted, linkable, with joiner/ joining cable
Material:Aluminium+PC,PC endcap
Driver: non dimmable, internal driver
LED strip:SMD2835 Epistar chip
Optional color temperature:3000K/4000K/6000K
Certification:RoHS, GS, ETL/CETL, CE, SAA, ErP
Warranty:3 years

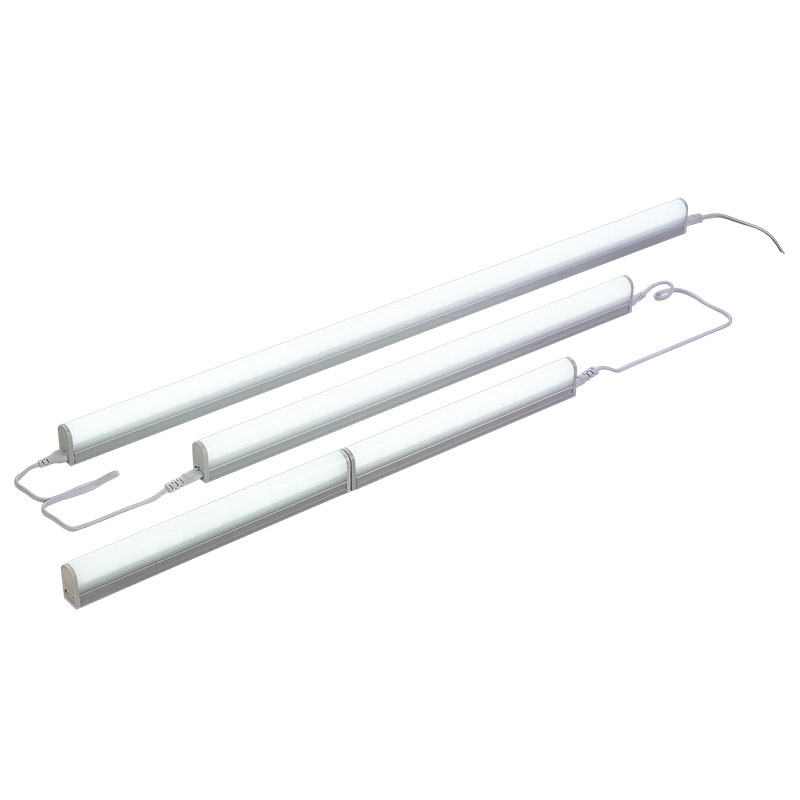

Originally designed and manufactured by SUNNY. Contemporary LED Wall Lamp, cabinet lamp, up and down Light and sconce. It can be widely used in bedside,living room,wall decorate, corridor, under cabinet or under mirror. Made of advanced aluminum, robust, secure, good vibration resistance and perfect finishing color.Energy saving and long lifetime. Motion sensor and dimmable type could be customized.

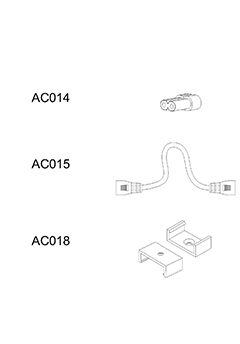

ACCESSORIES
PARAMETERS
LED:SMD 2835 110V-260V ~ 50Hz-60Hz
| MODEL | P | LED QTY | CRI | MEAS (mm) | CCT (K) | DRIVER | *LUMEN | PF | LIFE TIME |
| LED-001-300-3.6W | 1×3.6W | 18 | ≥83 | 308×24×45 | 3000 / 4000 / 6000 | inside | 400 | ≥0.9 | 50000 (h) |
| LED-001-600-7.2W | 1×7.2W | 36 | ≥83 | 608×24×45 | 3000 / 4000 / 6000 | inside | 800 | ≥0.9 | 50000 (h) |
| LED-001-900-10.8W | 1×10.8W | 54 | ≥83 | 908×24×45 | 3000 / 4000 / 6000 | inside | 1200 | ≥0.9 | 50000 (h) |
| LED-001-1200-14.4W | 1×14.4W | 72 | ≥83 | 1208×24×45 | 3000 / 4000 / 6000 | inside | 1600 | ≥0.9 | 50000 (h) |
| LED-001-1500-18W | 1×18W | 90 | ≥83 | 1508×24×45 | 3000 / 4000 / 6000 | inside | 1900 | ≥0.95 | 50000 (h) |
*LUMEN - Nominal lumen output
Guangzhou Sunny Lighting Electric Co., LTD (brand:SUNNY) was established in March of 1993, the production base is located in San Jiao Town of the Pearl River Delta Region. Sunny has been engaged in R&D of T8&T5 lamps since establishment, and has been devoted to R&D of LED Lamps since 2006. Up to now, we have accomplished professional production and global sales successfully.
After 26 years' effort, there are four professional product categories related to T5 and LED come into being as following:
-Cabinet lamps for residential and commercial use
-Aluminium pendants for office and commercial use
-Decorative PMMA pendants for office and commercial use
-LED cordless rechargeable bar lamps
DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LIFUD,HYTRONIC or MEANWELL driver, the price for dimmable type could be offered separately according to your request.
IES report is also available upon request.
Any question, please feel free to contact us.
