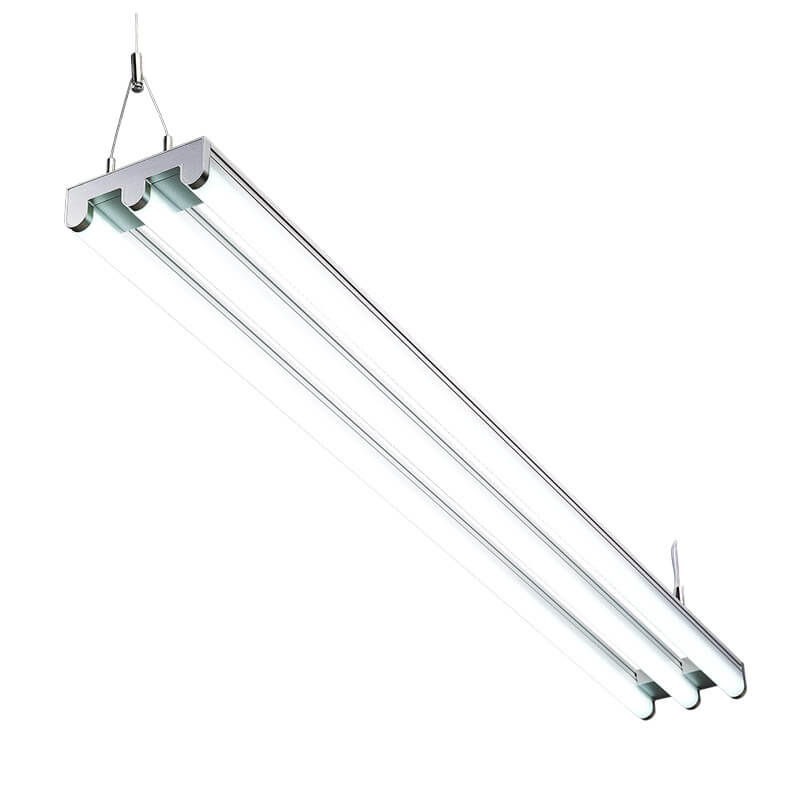

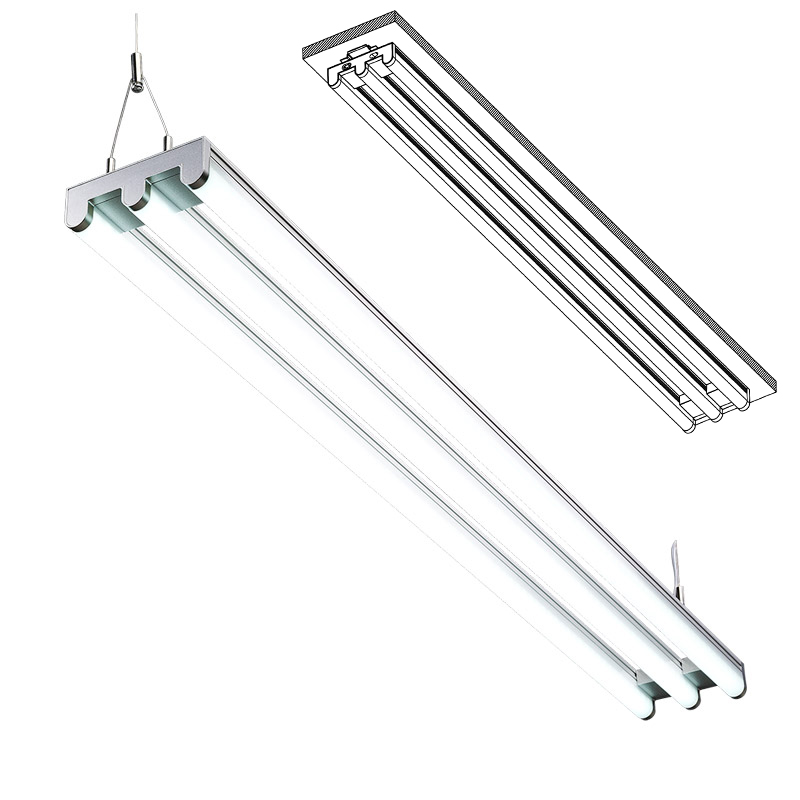

LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.
LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.
LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.

LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.

LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use. LED-003A LED ceiling mounted linear light indoor lamp for office and commercial and residential use.
Share
description

PRODUCT FEATURES

● A triple utra slim basic pendant in aluminium profile.

● Composed of premium aluminium and  high-transmittance opal PC diffuser.

● PC endcap.

● Finish: anodized aluminium .



SPECIFICATION

Model:LED-003A
Brand:SUNNY
Application:ceiling mount
Material:Aluminium+PC
Optional driver: non dimmable, 0-10V dimmable, DALI dimmable
LED strip:SMD2835 Epistar chip, high lumen
Optional color temperature:3000K/4000K/6000K
Certification:RoHS, CE, SAA, ErP

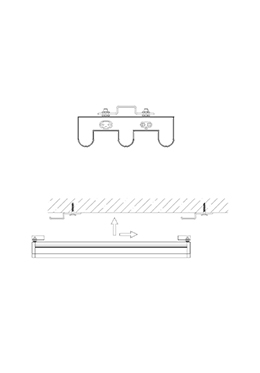

Originally designed and manufactured by SUNNY. Integrated LED linear lamp and LED chandelier can be used as ceiling mount or flush mount lighting fixture by fast clip. Durable, easy installation, linkable, 3', 4', 5', 8'type and dimmable type are available.Made from high quality materials, use constant current driver with high precision and high efficiency. No disturbing flickering and strobeless.Emergency battery kit could be customized.

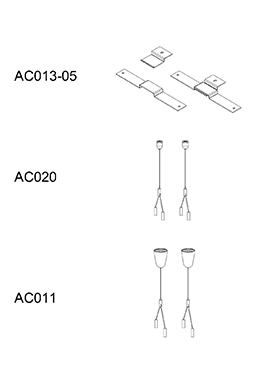

ACCESSORIES

Indoor down light LED suspension/surface mount linear lamp LED-003A     Indoor down light LED suspension/surface mount linear lamp LED-003A

PARAMETERS

            MODEL     PLED QTYCRIMEAS (mm)CCT (K)DRIVER*LUMENPFLIFE TIME
LED-003A-600-21.6W3×7.2W108≥83630×141.5×453000 / 4000 / 6000inside800≥0.9550000 (h)
LED-003A-900-32.4W3×10.8W162≥83930×141.5×453000 / 4000 / 6000inside1200≥0.9550000 (h)
LED-003A-1200-43.2W3×14.4W216≥831230×141.5×453000 / 4000 / 6000inside1600≥0.9550000 (h)
LED-003A-1500-54W3×18W270≥831530×141.5×453000 / 4000 / 6000inside1900≥0.9550000 (h)

*LUMEN - Nominal lumen output

Guangzhou Sunny Lighting Electric Co., LTD (brand:SUNNY) was established in March of 1993, the production base is located in San Jiao Town of the Pearl River Delta Region. Sunny has been engaged in R&D of T8&T5 lamps since establishment, and has been devoted to R&D of LED Lamps since 2006. Up to now, we have accomplished professional production and global sales successfully.

After 26 years' effort, there are four professional product categories related to T5 and LED come into being as following:
-Cabinet lamps for residential and commercial use
-Aluminium pendants for office and commercial use
-Decorative PMMA pendants for office and commercial use
-LED cordless rechargeable bar lamps

DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LIFUD,HYTRONIC or MEANWELL driver, the price for dimmable type could be offered separately according to your request.
IES report is also available upon request.

Any question, please feel free to contact us.
Email: info@sunnylighting.com
Tel: +86 020 38040271
