PRODUCT FEATURES

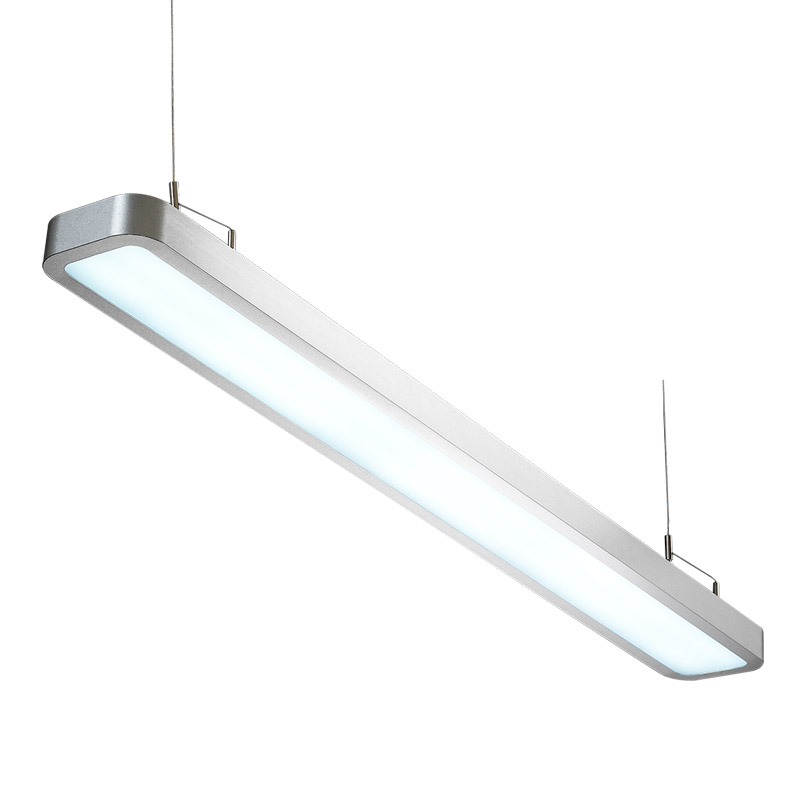

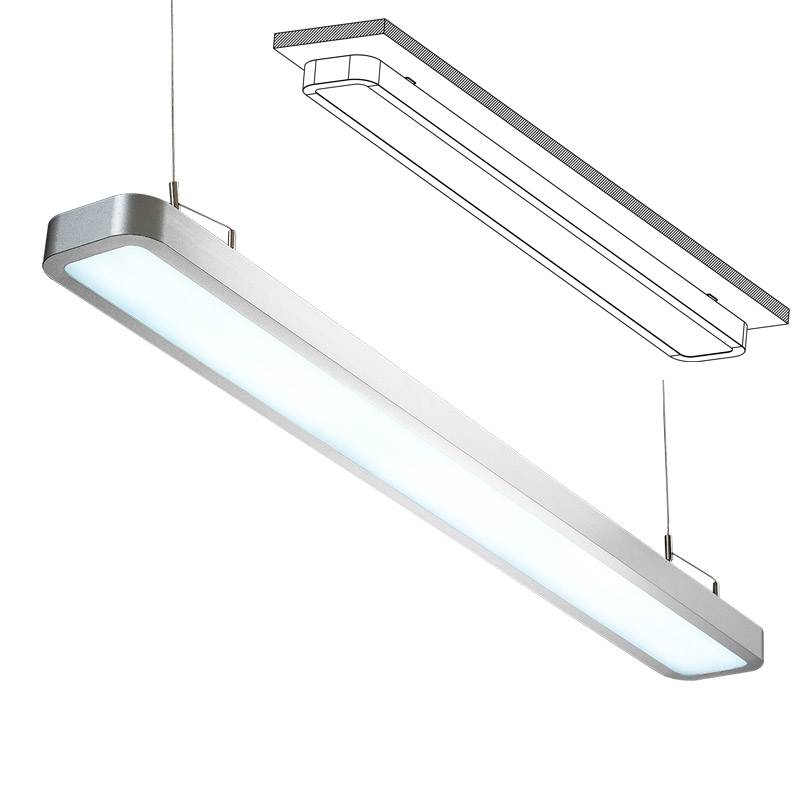

● A classic architectural LED lamp ideal for lighting hallways and reception areas in both residential and commercial settings.
● High-transmittance opal PC as diffuser, provides uniform distribution of light. Seamless joint and good color consistence.
● ABS endcap.
● Finish: matt black/matt white/silver/anodized aluminium.
SPECIFICATION
Model:LED-006 |
Brand:SUNNY |
Application:ceiling mount |
Material:Aluminium+PC |
Optional driver: non dimmable, 0-10V dimmable, DALI dimmable |
LED strip:SMD2835 Epistar chip, high lumen |
Optional color temperature:3000K/4000K/6000K |
Certification:RoHS, GS, ETL/CETL, CE, SAA, ErP |

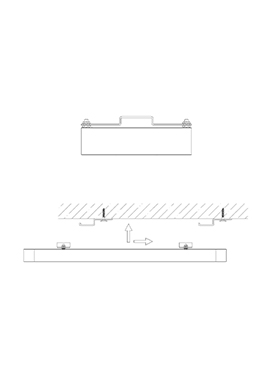

Originally designed and manufactured by SUNNY. Integrated LED linear lamp and LED chandelier can be used as ceiling mount or flush mount lighting fixture by fast clip. Durable, easy installation, linkable, 3', 4', 5', 8'type and dimmable type are available.Made from high quality materials, use constant current driver with high precision and high efficiency. No disturbing flickering and strobeless.Emergency battery kit could be customized.

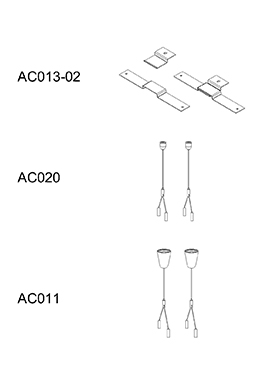

ACCESSORIES
PARAMETERS
MODEL | P | LED QTY | CRI | MEAS (mm) | CCT (K) | DRIVER | *LUMEN | PF | LIFE TIME |
LED-006-600-14.4W | 2×7.2W | 72 | ≥83 | 696×132×42 | 3000 / 4000 / 6000 | inside | 1600 | ≥0.9 | 50000 (h) |
LED-006-900-21.6W | 2×10.8W | 108 | ≥83 | 996×132×42 | 3000 / 4000 / 6000 | inside | 2300 | ≥0.95 | 50000 (h) |
LED-006-1200-28.8W | 2×14.4W | 144 | ≥83 | 1296×132×42 | 3000 / 4000 / 6000 | inside | 3200 | ≥0.95 | 50000 (h) |
LED-006-1500-36W | 2×18W | 180 | ≥83 | 1596×132×42 | 3000 / 4000 / 6000 | inside | 3900 | ≥0.95 | 50000 (h) |
*LUMEN - Nominal lumen output
Guangzhou Sunny Lighting Electric Co., LTD (brand:SUNNY) was established in March of 1993, the production base is located in San Jiao Town of the Pearl River Delta Region. Sunny has been engaged in R&D of T8&T5 lamps since establishment, and has been devoted to R&D of LED Lamps since 2006. Up to now, we have accomplished professional production and global sales successfully.
After 26 years' effort, there are four professional product categories related to T5 and LED come into being as following:
-Cabinet lamps for residential and commercial use
-Aluminium pendants for office and commercial use
-Decorative PMMA pendants for office and commercial use
-LED cordless rechargeable bar lamps
DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LIFUD,HYTRONIC or MEANWELL driver, the price for dimmable type could be offered separately according to your request.

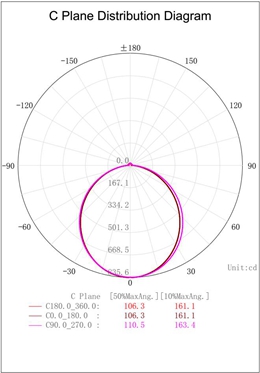

IES report is also available upon request.
