LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034

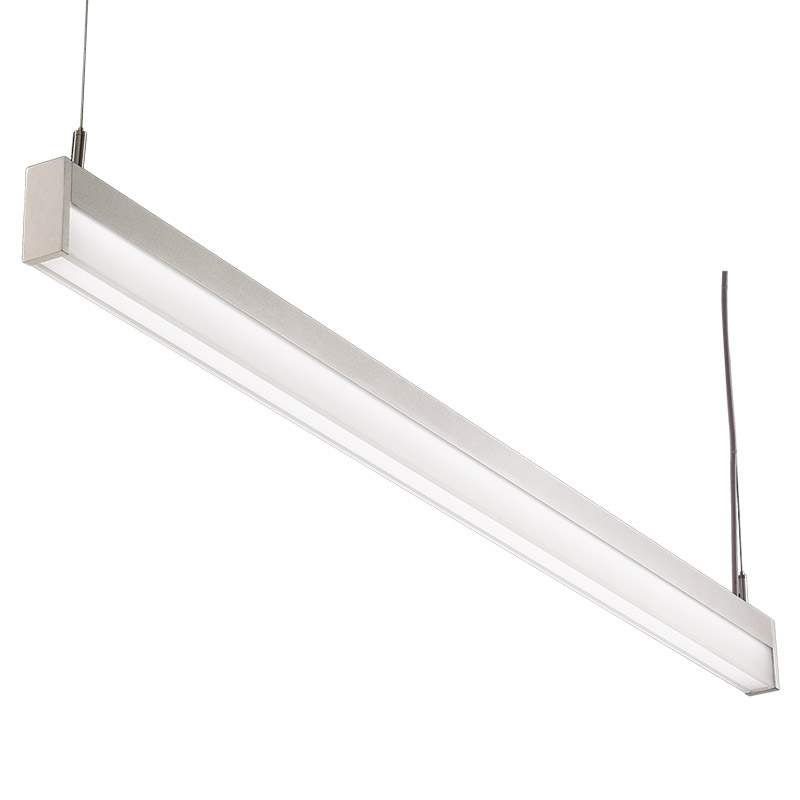

LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034
LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034

LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034

LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034 LED suspension linear lamp aluminium lighting fixture direct ilumination indoor chandelier lamp for office and commercial use LED-034
Share
description

PRODUCT FEATURES

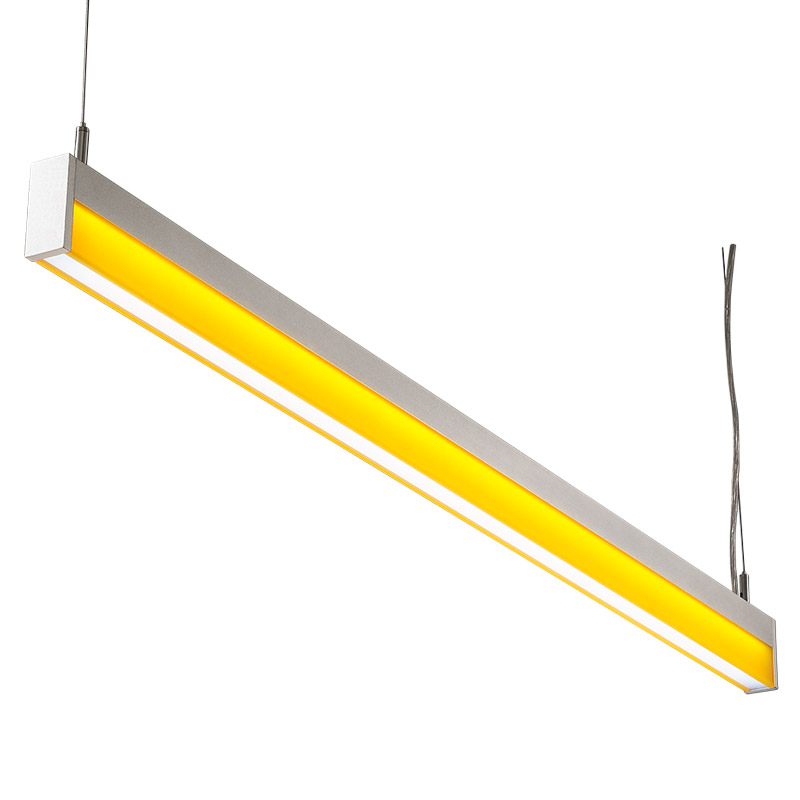

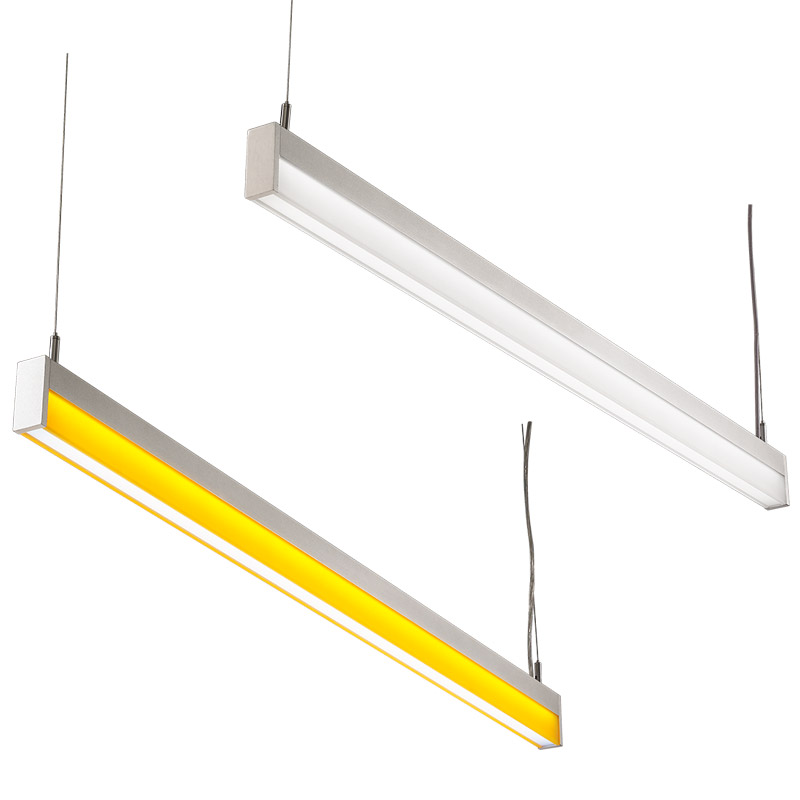

●  A  popular linear lamp with solid colorful acrylic panels. Ideal for kid center, shops, can be a very fashionable addition to commercial spaces.

● Composed of  premium aluminium and opal PC diffuser as well as two side acrylic panels in thickness 5mm. The acrylic panel color is optional in white, orange, blue, green, purple.

● ABS endcap.

● Finish: matt black/matt white/silver/anodized aluminium.


SPECIFICATION


Model:LED-034
Brand:SUNNY
Application:Suspension,Ceiling mounted, height adjustable.
Material:Aluminium+PC
Optional driver: non dimmable, 0-10V dimmable, DALI dimmable
LED strip:SMD2835 Epistar chip, high lumen
Optional color temperature:3000K/4000K/6000K
Certification:GS, RoHS,SAA, IES,CE, ErP
Warranty:3 years


Originally designed and manufactured by SUNNY. Integrated LED linear lamp and LED chandelier in aluminium profile. Durable, easy installation, linkable, 3', 4', 5', 8'type and dimmable type are available.  Made from high quality materials, use constant current driver with high precision and high efficiency. No disturbing flickering and strobeless. Emergency battery kit could be customized.

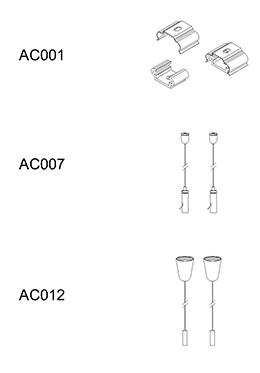

ACCESSORIES

*AC001:Ceiling mounted parts

*AC007:Adjustable hanging system

*AC012:Unadjustable hanging system



Indoor down light LED suspension/surface mount linear lamp LED-034   Indoor down light LED suspension/surface mount linear lamp LED-034

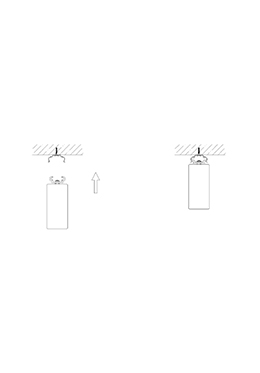

INSTALLATION - CEILING MOUNTED

   Indoor down light LED suspension/surface mount linear lamp LED-034

PARAMETERS

            MODEL     PLED QTYCRIMEAS (mm)CCT (K)DRIVER*LUMENPFLIFE TIME
LED-034-900-10.8W1×10.8W54≥83932×35×763000 / 4000 / 6000inside1200≥0.950000 (h)
LED-034-1200-14.4W1×14.4W72≥831222×35×763000 / 4000 / 6000inside1600≥0.950000 (h)
LED-034-1500-18W1×18W90≥831532×35×763000 / 4000 / 6000inside1900≥0.9550000 (h)

*LUMEN - Nominal lumen output


Guangzhou Sunny Lighting Electric Co., LTD (brand:SUNNY) was established in March of 1993, the production base is located in San Jiao Town of the Pearl River Delta Region. Sunny has been engaged in R&D of T8&T5 lamps since establishment, and has been devoted to R&D of LED Lamps since 2006. Up to now, we have accomplished professional production and global sales successfully.


After 26 years' effort, there are four professional product categories related to T5 and LED come into being as following:

-Cabinet lamps for residential and commercial use

-Aluminium pendants for office and commercial use

-Decorative PMMA pendants for office and commercial use

-LED cordless rechargeable bar lamps


DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LIFUD,HYTRONIC or MEANWELL driver, the price for dimmable type could be offered separately according to your request.

IES report is also available upon request.
