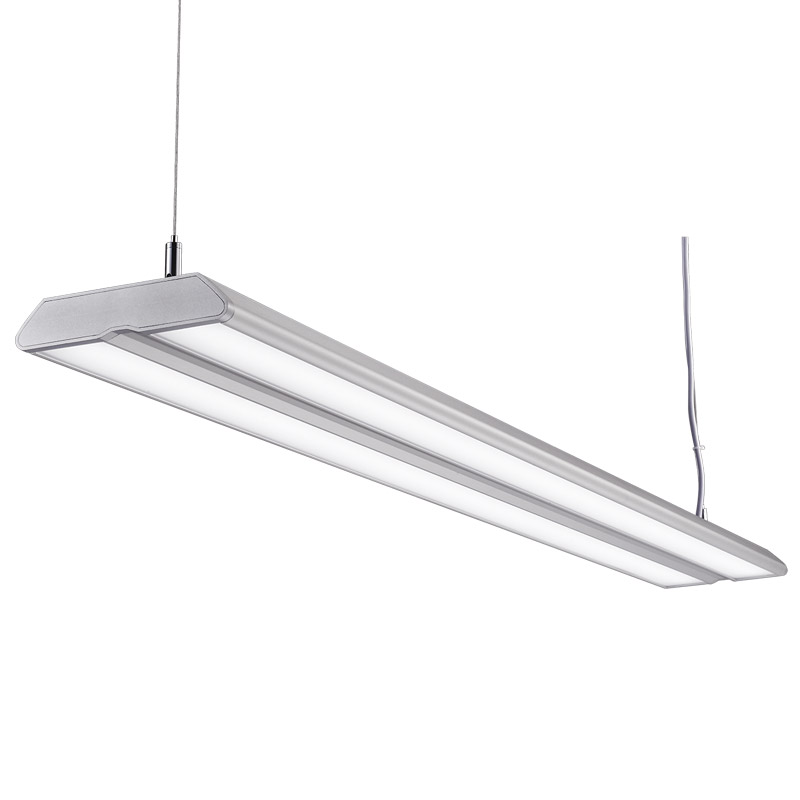

LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056
LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056
LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056

LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056

LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056 LED suspension linear lamp aluminium lighting fixture indoor chandelier lamp for office and commercial use LED-056
Share
description

PRODUCT FEATURES

● LED suspension lamp designed for modern office spaces, clean figure gentle yet strong, it gives light from 3 sides.

● Composed of premium aluminium and  high-transmittance opal PC diffuser.

● ABS endcap.

● Finish: matt black/matt white/silver/anodized aluminium.


SPECIFICATION

Model:LED-056
Brand:SUNNY
Application:Suspension, height adjustable.
Material:Aluminium+PC
Optional driver: non dimmable, 0-10V dimmable, DALI dimmable
LED strip:SMD2835 Epistar chip, high lumen
Optional color temperature:3000K/4000K/6000K
Certification:RoHS,IES, CE, ErP
Warranty:3 years


Originally designed and manufactured by SUNNY. Integrated LED linear lamp and LED chandelier in aluminium profile. Durable, easy installation, linkable, 3', 4', 5', 8'type and dimmable type are available.  Made from high quality materials, use constant current driver with high precision and high efficiency. No disturbing flickering and strobeless. Emergency battery kit could be customized.

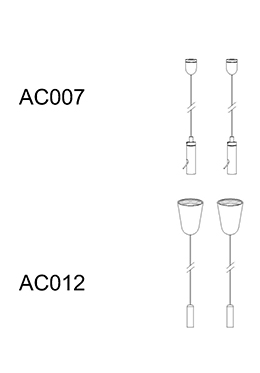

ACCESSORIES

Office direct lumination LED suspension linear lamp LED-056      Office direct lumination LED suspension linear lamp LED-056


PARAMETERS

LED:SMD 2835 110V-260V ~ 50Hz-60Hz

            MODEL     PLED QTYCRIMEAS (mm)CCT (K)DRIVER*LUMENPFLIFE TIME
LED-056-600-14.4W2×7.2W72≥83626×140×293000 / 4000 / 6000inside1600≥0.950000 (h)
LED-056-900-21.6W2×10.8W108≥83926×140×293000 / 4000 / 6000inside2300≥0.9550000 (h)
LED-056-1200-28.8W2×14.4W144≥831216×140×293000 / 4000 / 6000inside3200≥0.9550000 (h)
LED-056-1500-36W2×18W180≥831516×140×293000 / 4000 / 6000inside3900≥0.9550000 (h)

*LUMEN - Nominal lumen output


Guangzhou Sunny Lighting Electric Co., LTD (brand:SUNNY) was established in March of 1993, the production base is located in San Jiao Town of the Pearl River Delta Region. Sunny has been engaged in R&D of T8&T5 lamps since establishment, and has been devoted to R&D of LED Lamps since 2006. Up to now, we have accomplished professional production and global sales successfully.


After 26 years' effort, there are four professional product categories related to T5 and LED come into being as following:

-Cabinet lamps for residential and commercial use

-Aluminium pendants for office and commercial use

-Decorative PMMA pendants for office and commercial use

-LED cordless rechargeable bar lamps


DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LIFUD,HYTRONIC or MEANWELL driver, the price for dimmable type could be offered separately according to your request.

IES report is also available upon request.


Any question, please feel free to contact us.

Email: info@sunnylighting.com

Tel: +86 020 38040271
